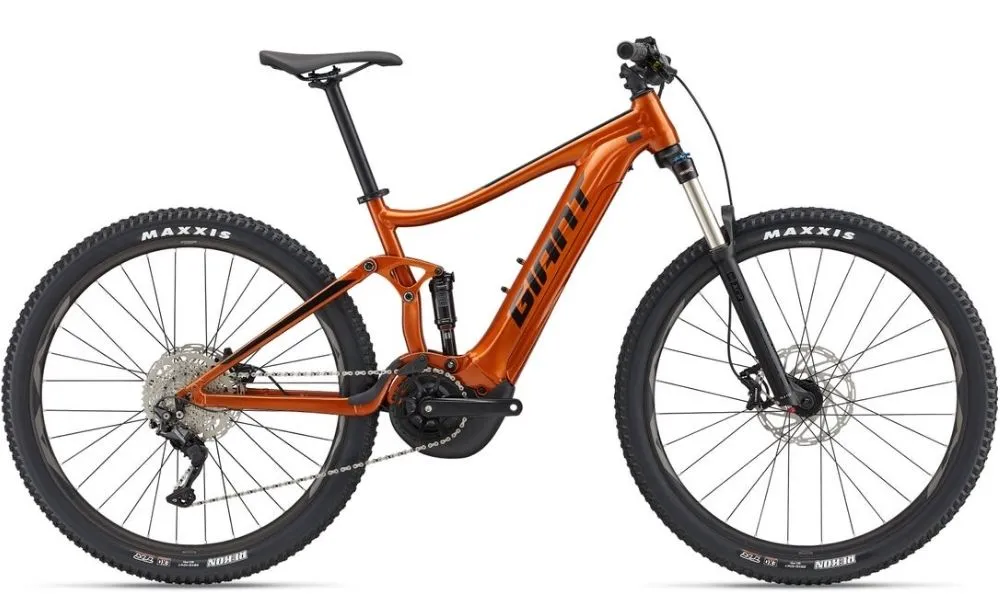

Giant 2022 Stance E 2 29er
Steep climbs, technical descents, longer days on the trail. With a smooth suspension setup and a seamless boost of pedalling support, this E-bike gives you the power and technology to ride the trails you dream about.
Strong Motor Support
The SyncDrive Sport motor with 70Nm of torque and 360 percent tunable support helps you climb steep, rugged trails with ease.
Total Control
ALUXX aluminium frame with 120mm FlexPoint suspension and 29-inch wheels produces a smooth, confident ride on technical trails. The Giant E-bike App gives you navigation, health and fitness functions.
Efficient
500Wh EnergyPak offers long riding range. This integrated battery is easy to charge up to 80 percent in 2.5 hours with new 6A Fast Charger.
Specifications
Giant 2022 Stance E 2 29er
Frame
Colour: Amber Glow
Frame: ALUXX grade aluminum, FlexPoint, 120mm travel
Fork: SR Suntour XCR 34 Air LO-R, 130mm travel, Lockout, 110x15mm Axle
Shock: RockShox Monarch R, High Volume, custom tuned
Weight: N/A
Drivetrain
Crankset: Forged Alloy minimal Q-factor, 36T Steel Direct Mount ring (S:160mm, M:165mm, L:165mm, XL:170mm)
Pedals: N/A
Chain: KMC e.10 Sport, e-bike optimised
Bottom Bracket: N/A
Rear Derailleur: Shimano Deore, 10-speed, Shadow
Front Derailleur: N/A
Derailleur Shifter: Shimano Deore, 10-speed
Freewheel/Cassette: Shimano CS-M4100-10, 11-46T, 10-speed
Drive Unit: SyncDrive Sport, 70Nm, powered by Yamaha
Battery: EnergyPak Smart 500Wh
Wheels
Tires: Maxxis Rekon 29x2.4", foldable, TLR, EXO
Wheels/Rims: Giant AM 29", Tubeless ready
Hubs: Giant eTracker Sport
Braking System
Brakes: Tektro HD-M745 Orion, 4-piston, hydraulic disc, 203mm
Brake Levers: Tektro HD-M745 Orion
Other
Handle Bar: Giant Connect TR Riser 31.8mm
Stem Headset: Giant Contact S:50mm, M:50mm, L:50mm, XL:60mm
Grips: Giant Tactal single lock-on
Saddle: Giant Sport
Seat Post: Giant Dropper
Controller: Giant RideControl One ANT
Display: ANT Wireless display compatible
Sizing Guide
Giant 2022 Stance E 2 29er
-
- S
- 163 cm 172 cm
-
- M
- 171 cm 180 cm
-
- L
- 179 cm 188 cm
-
- XL
- 187 cm 198 cm
| S | M | L | XL | ||
|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH (mm) | 406 | 432 | 482 | 507 |
| B | SEAT TUBE ANGLE | 73.5° | 73.5° | 73.5° | 73.5° |
| C | TOP TUBE LENGTH (mm) | 580 | 600 | 625 | 650 |
| D | HEAD TUBE LENGTH (mm) | 100 | 110 | 120 | 135 |
| E | HEAD TUBE ANGLE | 67.0° | 67.0° | 67.0° | 67.0° |
| F | FORK RAKE (mm) | 40 | 40 | 40 | 40 |
| G | TRAIL (mm) | 113.6 | 113.6 | 113.6 | 113.6 |
| H | WHEELBASE (mm) | 1166 | 1187 | 1213 | 1240 |
| I | CHAIN STAY LENGTH (mm) | 475 | 475 | 475 | 475 |
| J | BOTTOM BRACKET DROP (mm) | 20 | 20 | 20 | 20 |
| K | STACK (mm) | 593 | 603 | 612 | 626 |
| L | REACH (mm) | 404 | 421 | 444 | 465 |
| M | STAND OVER HEIGHT (mm) | 741 | 756 | 788 | 792 |
| O | STEM LENGTH (mm) | 50 | 50 | 50 | 60 |
| P | CRANK LENGTH (mm) | 160 | 165 | 165 | 170 |
| Q | WHEEL SIZE | 29" | 29" | 29" | 29" |
